Home Care and Beauty Spray Imaging

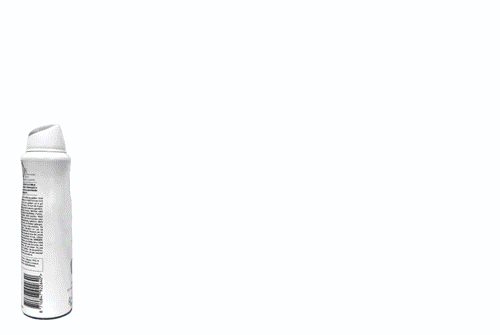

LaVisons SprayMaster inspex systems using LED generated light sheets and backlight illumination measure spray geometry data of pressurized spray cans and pump sprayers. Computer based spray image processing guarantees fast, repeatable and operator independent results. The flexible system design makes it ideally suited for routine spray characterization, from R&D to product quality control applications of e. g. personal care and pharmaceutical spray devices.

Spray patternation on LED light sheet

    Complete spray characterization in time and space using high-speed imaging

LaVision Spray Test Benches
  • Off-line / at-line QC
  • Manual testing
  • Spray plume and pattern
  • Comparison to reference pattern
  • Test reports
Flexible base frame for spray plume and spray patternation imaging

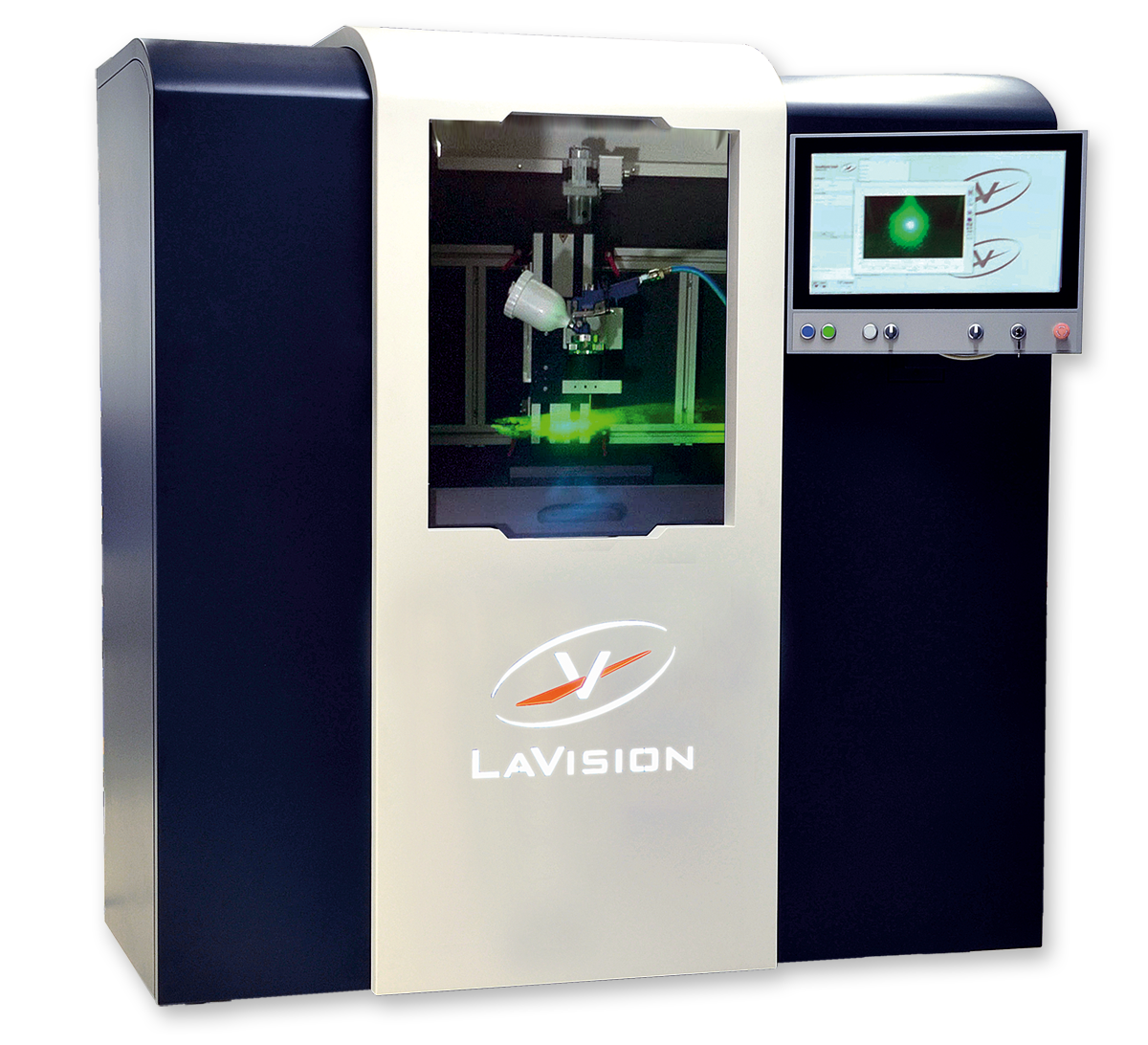

LaVision spray test chamber with automated spray characterization
