Laser Imaging in Engines

LaVision’s EngineMaster laser imaging systems provide information on fuel injection, mixture preparation, pre-combustion, flame species, NO formation and soot production. In-cylinder flow fields are measured with our FlowMaster PIV systems. Crank angle resolved in-cylinder laser imaging is performed on pulsed laser light sheets in optical engines or applying keyhole imaging using minimal invasive endoscopes.

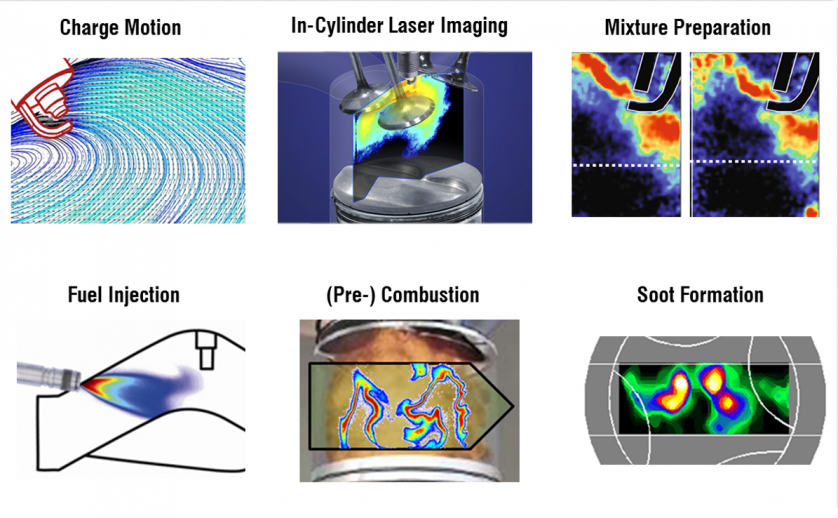

Laser imaging investigating all stages of internal combustion engines
no-img
no-img
Laser light sheet imaging in engines

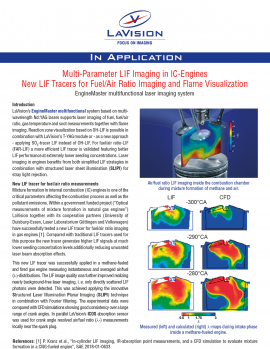

EngineMaster Multifunctional
Laser Imaging System

LaVision’s EngineMaster Multifunctional system supports fuel injection and evaporation studies, mixture formation (%lambda%-maps) and end gas temperature measurements, imaging of knock centers and soot formation processes.
For all laser imaging applications a pulsed multi-wavelength Nd:YAG laser is the standard light source. Upgraded with a T-YAG module (intra-cavity etalon) the laser also allows OH-LIF imaging. Only by changing the emission filter in front of the camera the desired in-cylinder process can be investigated. The crank angle resolved measurements are synchronized with the encoder signal of the engine supporting all engine operation modes such as cold start, skip-fired and acceleration modes.

In-cylinder laser imaging applications measured with the EngineMaster multifunctional system
no-img
Direct fuel spray injection:
liquid-vapor seaparation
no-img
Air/fuel ratio (%lambda%) maps
gas temperature, EGR recirculation
no-img
Highly sensitive soot imaging
with detection limits in the ppb-range
no-img

In-Cylinder LIF Imaging of Flame Species

For the detection of all LIF-active diatomic flame species such as OH, NO, CH, CN a dye laser is added to the multi-functional EngineMaster system. Flame front visualization (OH-LIF), pollutant formation (NO-LIF) as well as the location of knock centers (HCHO-LIF) are the main targets for these tunable LIF imaging techniques.

no-img
Tumble flow field near inlet valve
Image courtesy: University of Duisburg

In-Cylinder Flow Visualization: Charge Motion

For the analysis of in-cylinder charge motion LaVision’s FlowMaster PIV systems are well established in the automotive industry.

Predefined crank angle resolved flow fields with cycle statistics as well as high-speed PIV movies of the in-cylinder charge motion during mixture formation are recorded applying state-of-the-art PIV strategies incl. dynamic double-frame (dt) sampling.

no-img
In-cylinder volumetric (3D3C) flow field
Image courtesy: TU-Darmstadt
Advanced flow field analysis in engine development

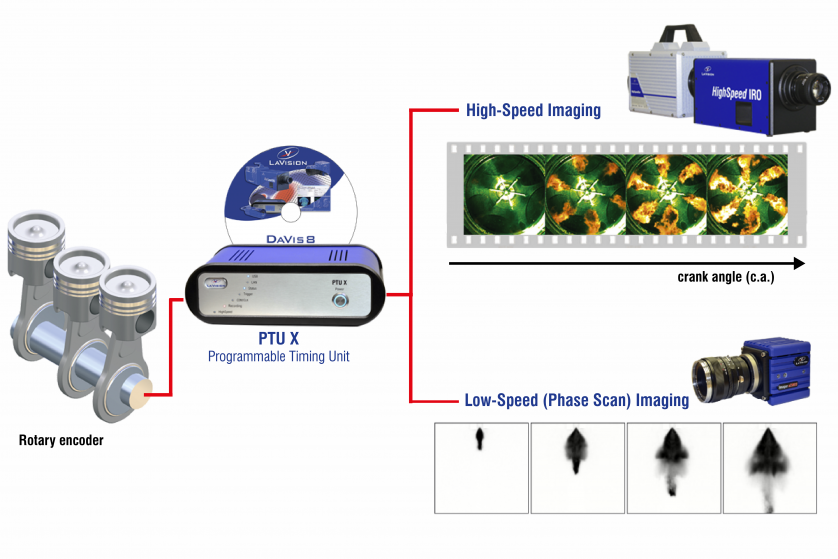

Engine Synchronization: Crank Angle based Imaging

no-img


LaVision’s PTU X timing unit is the universal synchronization interface between the laser imaging system and the engine supporting all engine operation modes including engine start, skip-fired and acceleration modes.

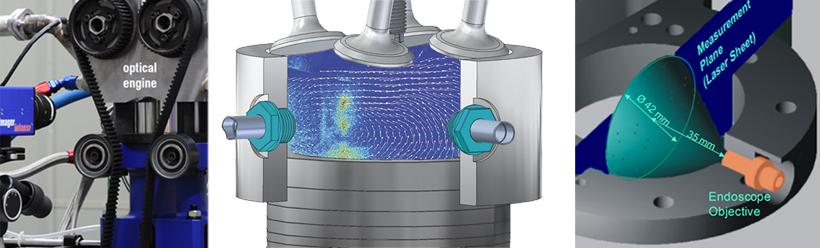

From Optical Engines to Endoscopic Imaging

no-img


While optical engines offer unlimited optical access for laser imaging applications, endoscopic keyhole imaging can be realized in slightly modified production engines featuring two small optical ports one for the laser endoscope and one for the camera endoscope.
